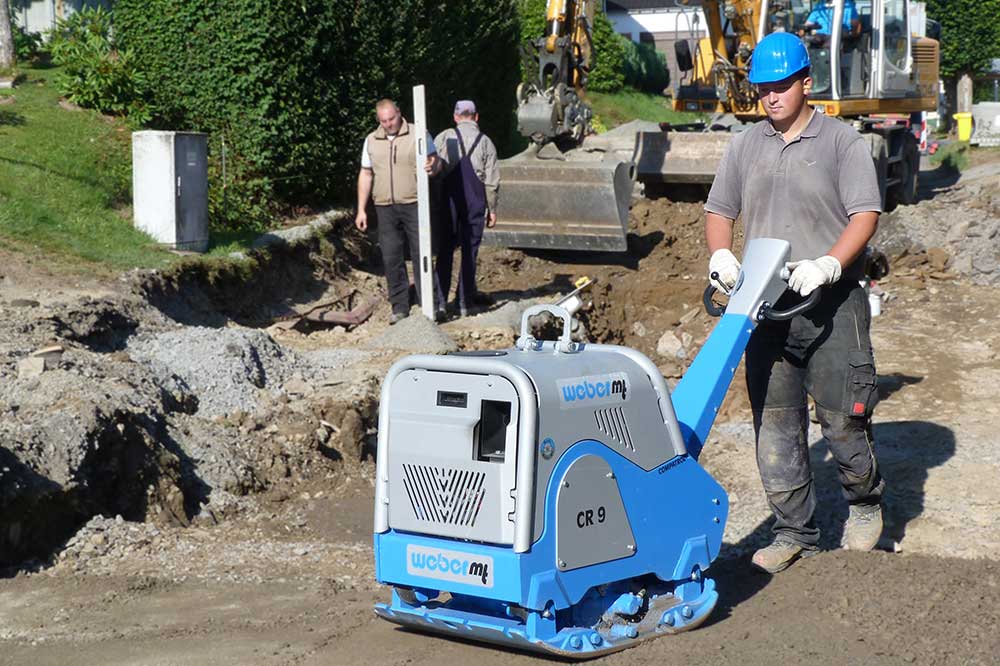

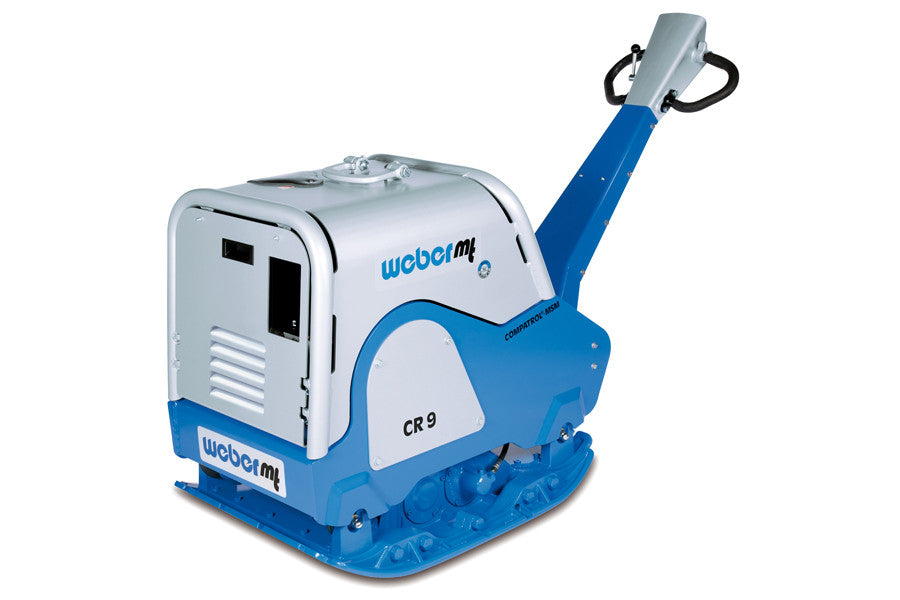

CR 9 reversible plate compactor - largest and most powerful
They raise the bar in the premium class of manually operated soil compactors: CR 8 and CR 9 made by Weber MT.
Their range of application spans from classic earthworks to paving.
The balanced operating characteristics, low hand-arm vibrations and ergonomically designed handles allow you to work without getting tired and guarantee a high degree of user comfort. Handy features include lockable fold-up guide bars, which let operators adjust units to their height, and large lifting eyes, which make it possible to load the vibrating plates in a quick and safe manner.
Besides the standard version with a Hatz engine and electric start, the CR 9 soil compactor is also available in other variations: the “MDM” version with engine protection and the “CCD 2.0” version which includes the engine protection feature as well as the compaction control meter COMPATROL®.
The CR 9 is also available with WEtrac - Weber MT´s machine data telemetry.
Hand-arm vibrations < 2,5 m/s²
Looking to Finance this Compactor? It's quick and easy. Click here to apply.
** When purchasing diesel equipment please make sure you have a service center in your area. **All batteries are shipped dry
Item# | Model | Engine | Wgt./lbs | CF/lbs | Hz | W (in) |
---|---|---|---|---|---|---|
115510 | CR 1-II HD | GX120 | 203 | 3372 | 100 | 14 |
115614 | CR 2 HD | GX160 | 315 | 5620 | 100 | 18 |
116144 | CR 3-II HD | GX270 | 448 | 7868 | 80 | 20 |
116263 | CR 5-II HD | GX270 | 617 | 10150 | 75 | 22 |
116538 | CR 6 HD | GX390 | 794 | 12364 | 72 | 24 |
116540 | CR 6 HD CCD | GX390 | 855 | 12364 | 72 | 24 |
116641 | CR 7-II HD | GX390 | 937 | 14613 | 74 | 26 |
116645 | CR 7 HD CCD | GX390 | 948 | 14613 | 74 | 26 |
116643 | CR 7 E1 MDM | Hz 1B50 (E) | 1052 | 14613 | 74 | 26 |
116644 | CR 7 E1 CCD 2.0 | HZ 1B50 (E) | 1052 | 14613 | 74 | 26 |
116737 | CR 8 E1 MDM | HZ 1D90 (E) | 1334 | 16860 | 67.5 | 28 |
116738 | CR 8 E1 CCD 2.0 | HZ 1D90 (E) | 1334 | 16860 | 67.5 | 28 |
116828 | CR 9 E1 MDM | HZ 1D90(E) | 1631 | 22480 | 65 | 30 |
116829 | CR 9 E1 CCD 2.0 | Hz 1D90(E) | 1631 | 22480 | 65 | 30 |
116831 | CR9 HD CCD | GX630 | 1631 | 22480 | 65 | 30 |
